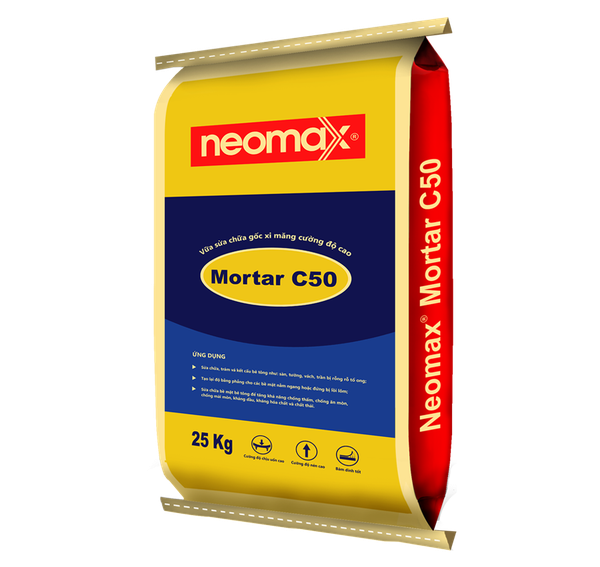

Neomax® Mortar C50 is a type of two component repair mortar used for concrete surface. This is a combination of cement, mineral aggregates and special additives. After being mixed with a recommended volume of water, the mortar mixture shall be advanced with great flexibility and adhesion to all substrates, and the compressive strength of the finished mortar after 28 days is very high.
To repair and fix different concrete structures such as: honeycombed floors, walls, and ceiling due to improper construction processes, mechanical impacts and abrasion, or due to water invasion;
To repair and recreate flatness for uneven horizontal or vertical surfaces due to improper construction processes;
To repair concrete surfaces to improve such abilities as water-proofing, anti-corrosion, anti-abrasion, and resistance to oils, chemicals and sewage.
Only clean water needs to be added. Very easy to use;
High and quickly-improved strength, its compressive strength at 28 days of age is ≥50 Mpa;
Incredible adhesion on concrete and steel substrates;
Fully compatible with the expansion of concrete and steel substrates;
Improve such abilities as waterproofing, anti-corrosion, anti-abrasion, oil resistance, chemical resistance and waste for surface to be repaired;
No chloride and no abrasive effect on reinforcement;
Harmless and usable for drinking water tanks.
Store the product in a dry, cool and well ventilated area;
Do not expose it to direct light.
SHELF LIFE: 06 months since the production date.
Mixing ratio of water 16 - 18% by weight;
4.0 - 4.5 liters of clean water for 25kgs of grout.
Fresh mixture: ~2.09 kg/liter;
84 bags of Neomax® Mortar C50 for 1 m3 fresh grout.
1 bag of Neomaxâ Mortar C50 (25 kg/bag) for 1.4 m2 of finished surface with the thickness of 10mm.
WORKING TEMPERATURE: 10°C - 35°C.
PRODUCTION STANDARD: TCCS 17:2018/NEOMAX
Compressive strength (ASTM C349):
- 07 days: ≥ 40 MPa;
- 28 days: ≥ 50 MPa.
Flexural strength (ASTM C348):
- 28 days: ≥ 7 MPa.
Adhesion strength on M30 concrete substrates (ASTM D4541):
- 28 days: ≥ 1 MPa.
Notes: All above technical properties are tested in the standard experiment conditions with temperature of 25oC and moisture of 50%.
All working concrete surfaces must be completely clean and free from dust, grease and impurities;
All weak mortar layers (if any) must be removed;
The water-absorbing surface needs to be saturated but no more excessive water trapped.
Water consumption is about 16 – 18% of total volume of Neomax® Mortar C50;
It is necessary to use 4.0 to 4.5 liters of water for 1 bag (25kgs) of dry product;
Use an electric mixer at speeds of 400-600 rounds/minute to mix the product;
Pour the needed volume of water into the mixing bucket, then slowly adding Neomax® Mortar C50 while keeping stirring thoroughly;
Mixing time is about 5 minutes until we get a homogeneous mixture.
Use the mortar mixture right after finishing the mixing work with plastering hawks or steel trowels;
Total allowed working time is 20 - 30 minutes at the temperature of 25 ± 2°C;
In case the depth of repaired location is more than 10mm, it is advisable to apply more than 1 layer, whose maximum thickness is no more than 10mm. The following layer should only be applied after the current one is dry and rough.
Finished product must be maintained properly as other cement-based products. Apply all reasonable measures to minimize any type of water loss due to evaporation by such available materials as wet bags, plastic coverage materials or other suitable maintenance mixtures.
